Jyoti Rubber Udyog India Ltd

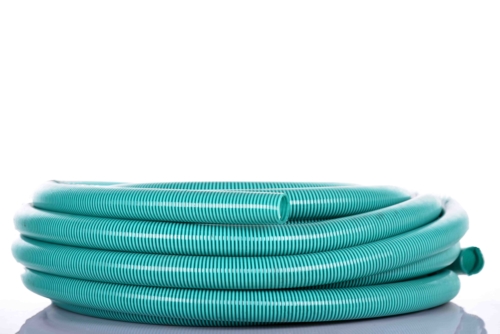

PVC Suction & Discharge Hose

PVC Suction & Discharge Hose as per BS 2751 are highly resistant to petroleum products and suitable for use at high temperature up to + 240 0F and also where food grade sheets are required. Calendered or press Moulded finish.

Thickness: 0.5 to 100.0 mm as per the requirement of the customer

Size: 1mt*2mt in mould finish or long length from 0.5

Internal Diameter Nominal Bore I.D O.D Testing Pressure Length
inch mm mm Kgf/cm mtr.
3/4 19 24 10.0 30
1 25 30 10.0 30
1-1/4 32 37 10.0 30
1-1/2 38 44 10.0 30
2 SO 58 8. 30
2-1/2 63 72 8. 30
3 75 84 8. 30
4 100 112 6. 30
5 125 143 5.0 15
6 152 170 4.0 15
8 203 225 3.0 6
