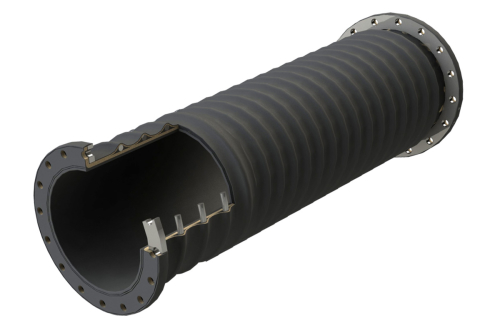

Fly Ash/Cement Grouting Hose

Fly Ash/Cement Grouting Hose Required for spraying of content grout at irrigation projects, building, sites, bridges and roads in hilly terrains.

CONSTRUCTION:

  • Lining: Uniform seamless and extra thick lining of highly abrasion-resistant soft rubber compound.
  • Reinforcement: Woven, braided or spirally wrapped textile material of natural or synthetic fibres.
  • Cover: Cloth – marked finish natural compound resistant to abrasion and weather.
  • Electrical Bonding: Copper wire comprising a number of strands is incorporated between the reinforcement plies to provide electrical continuity along the whole length of the hose.
  • Temperature Range: -400 F to + 158 0F
    Length: Up to 18.5 meters

Technical Specifications:

Nominal   Bore Tolerance on Nominal Bore Minimum Thickness of Lining Minimum Thickness Of Cover Working Pressure Proof Pressure Bursting Pressure
MM MM MM MM Kg/cm² Kg/cm² Kg/cm²
25.0 ± 1.25 6.3 1.5 10 20 40
31.5 ± 1.25 6.3 1.5 10 20 40
38.0 ± 1.50 6.3 1.5 10 20 40
50.0 ± 1.50 6.3 1.5 10 20 40
63.0 ± 1.50 6.3 1.5 10 20 40
75.0 ± 2.00 6.3 1.5 10 20 40
100.0 ± 2.00 6.3 1.5 10 20 40
125.0 ± 2.00 6.3 1.5 10 20 40
150.0 ± 2.00 6.3 1.5 10 20 10
